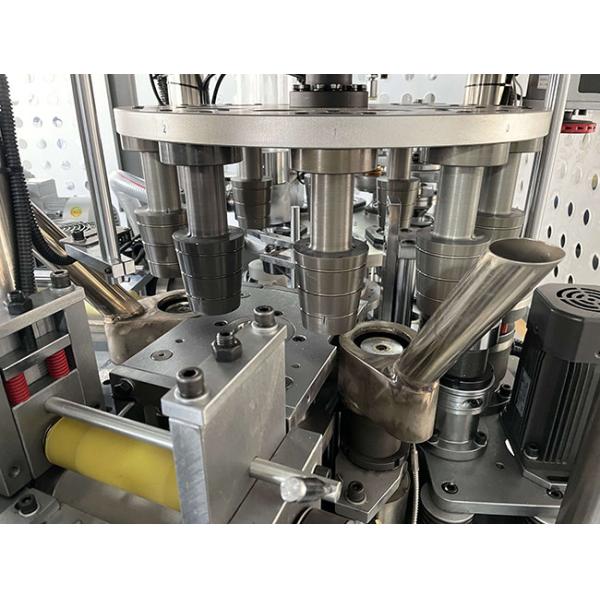

High Speed carton cup forming machine take away juice paper cup making machine is our most recently developed product, which is an ideal equipment both for making both hot and cold drinking paper cups for (coffee, tea, ice cream, juice, beer, soup, food, snacks, etc). This machine throughout the entire machine, Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market almost gear / chain transmission and cam design paper cup machine.
♦Technical Parameters♦
| Type | PF-OC100 High Speed Paper Cup Making Machines |
| Cup size: | 4-16 oz (other customized size) |
| Production capacity | 140-160 pcs/minutes |
| Power source: | 380V 50HZ( or customized ) |
| Suitable Material: | 170-380g/m2 (single or double-coated paper) |
| Air source | 0.6 Mpa |
| Total Power: | 34 KW |
| Package size: | 2460*1620*1780mm |
| Packaging of cup collection | 3000kg |
| H.S code for customs: | 8441309000 |
♦Feature♦
1) Adopts crankshaft and servo motor control instead of traditional cam transmission, no oil, lubricant, which solved the negative effects of cam and bearing wearing and impacting while, machine running at high speed.
2) This machine uses servo indexing mechanism, replaced the traditional paper cup machine which uses the Geneva indexing mechanism. It's new in paper cup machine manufacture field.
3) Adopts the most advanced blank shuttle & rotary placer mechanism, replaced traditional up and down movement suction feeding way to avoid paper move problem.
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
